Super mini china scanner with 5MP CMOS CCT S510 A3

FOB Reference Price:Get Latest Price
US $75-89 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Document Scanner
Scan Element Type:
CMOS
Colour Depth:
24 Bit
Interface Type:
USB
Max Paper Size:
A3
Optical Resolution:
2544*1936
Scan Speed:
1 second
Brand Name:
OEM
Model Number:
S510-A
Place of Origin:
Guangdong, China (Mainland)
resolution:
2544*1936
CMOS:
5 MP
scan speed:
1 second
max. file size:
A3
materials:
Aluminum and plastic
OCR:
YES
Skype:
szcct02
whatsapp:
008613798246710
Supply Ability
Supply Ability:
4000 Unit/Units per Week
Packaging & Delivery
Packaging Details
usual packing
Port
Shenzhen

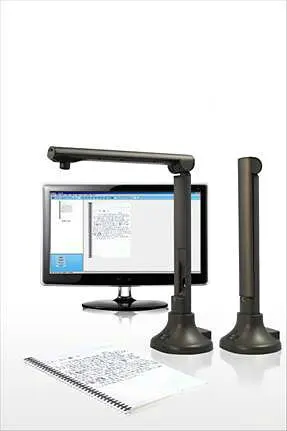

Mini China Scanner

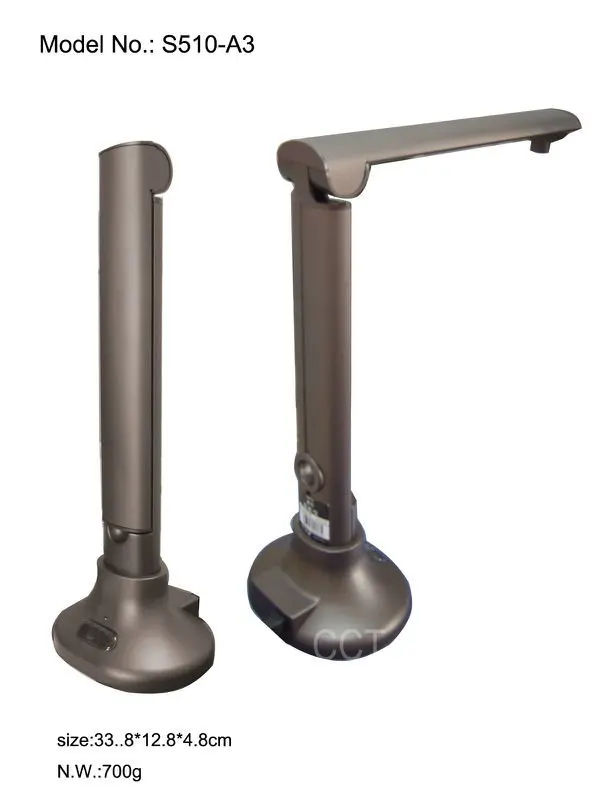

CCT-S510-A3




brief introduction



 1. It called camscanner, portable, multi-function but quite different from old fashion scanner.

2. It can scan file, book and card etc. max file size up to A3.

3. USB power supply .it has to work with scanner software on PC, high speed scanning.

4. It is compatible with projector, show file detail on the white board.

5. it has excellent OCR function to convert scanned file to editable file(excel/text/word





Specification



5 megapixel (2592 x 1944 resolution)

Shooting Mode Scanner---1 second high speed scanning,copy and saving document,book or physical entity.
Video Booth---work with projector
Intelligent management software
  1.Printing without capture
  2.Internet fax without paper
  3.Instant email
  4. video recording
  5.Multi-format documents saving
  6.Enclosed OCR recognition system,it converts the scanned documents into editable file immediatly.
  7.Advantage video display tool, real-time dynamic zoom in/out.
  8.Random drag and drop file.

Resolution: 2592*1944
Image format: PNG, JPG, BMP, TIFF, PDF
Video format: AVII/O connection: USB 2.0
Power source: powered via USB cable

Image control: brightness, exposure, sharpness, color, gain, hue/saturation
Lighting condition: works under natural light or with built-in LED light
Specification
Sensor parameter: 5megapixels CMOS active pixels digital image sensor
Optical format: 1/2.5 inch
Active pixels max.: 2592H*1944V
Frame rate: 30FPS (VGA)
ADC resolution: on-chip10 bit
Responsivity: 1.0V/Lux-sec
Illumination: 50 - ~Lux
View angle: 78°
SNR: 40dB
Dynamic range: 68dB
Operating temperature: -30 to 70°
Lens:2G2P+IP
Lens F number: F4.2mm F/NO 2.8
Flange back: 0.8mm
Back focal length: 0.8mm
Focal length: F=2.7mm
Power supply: USB cable
Power consumption: 220mW at maximum data rate, 3.3V
Power consumption current at 30fps<120mA
Suspend current <5Ma
Image resolution: 2592H*1944V A3
Output format: YUY2
Communication interface: USB2.0 with UVC
AGC/AEC/white balance: auto
Certification: FCC, CE, ROHS



Packaging & Delivery



1.Packaging Detail : Gift box+Carton

2.Delivery Detail : Within 1-5 working days after payment



MOQ& Payment &shippment



1.MOQ:5pcs,Accept Mixed Order

2.Payment Terms: T/T, Western Union, Paypal.30% deposit after order is confirmed,70% balance before shipment.

3.Shipping Terms: DHL,UPS,FEDEX,EMS,etc



Warranty



1.Quality: All models passed CE,FCC,ROHS Certification.

2.Guarantee: 1 year amendment warranty provided
